This page is designed to describe all check points to perform before and after installing RAN packages for a RAN platform connectivity.

Here are the needed artefacts to install RAN packages on your gateway operating system.
The recommended package version number to use for a RAN platform compatibility is indicated in the Compatibility Matrix.

Here are the list of operations to perform to check that the install process has been correctly done.

Check that all packages in your gateway environnment are correctly installed.

command :

• For iBTS: # opkg list-installed
• For iFemtoCell: # opkg list-installed
• For Wirnet Station: # get_version -u -v

expected result : All RAN packages (BSCC, SNMP, OpenVPN, HAL, SPF) have been correctly installed with the requested version.

For example (iBTS):

bscc - v2.1
kerlink-openvpn-config-pki2-klk-lpbs-060337 - 1.8
keros - 3.1.13-0-ga05e3252
libloragw2 - 4.0.1-klk3
lorasnmp - v2.1
spf2 - 4.0.0-klk9_4.0.1-klk3

Check that following ports accept all input and output connections from/to:

• port 1194: OpenVPN Server
• port 10161/10162: RAN BSC component (SNMP & Trap management)
• port 1700: Packet Forwarding Server

command :

  '# iptables --list-rules'

expected result :

port 1194 accept I/O connections:

    -A INPUT -p udp -m udp --sport 1194 -j ACCEPT
    -A OUTPUT -p udp -m udp --dport 1194 -j ACCEPT

    -A INPUT -p udp -m udp --sport 10161:10162 -j ACCEPT
    -A OUTPUT -p udp -m udp --dport 10161:10162 -j ACCEPT


    -A INPUT -p udp -m udp --sport 1700 -j ACCEPT
    -A OUTPUT -p udp -m udp --dport 1700 -j ACCEPT

For example (iBTS):

-P INPUT DROP
-P FORWARD DROP
-P OUTPUT DROP
-A INPUT -p udp -m conntrack --ctstate NEW,RELATED,ESTABLISHED -j ACCEPT
...
-A INPUT -p udp -m udp --sport 1194 -j ACCEPT
-A INPUT -p udp -m udp --sport 1700 -j ACCEPT
-A OUTPUT -p udp -m udp --sport 10161:10162 -j ACCEPT
-A OUTPUT -p udp -m udp --dport 10161:10162 -j ACCEPT
...
-A OUTPUT -p icmp -j ACCEPT
-A OUTPUT -p udp -m udp --dport 1700 -j ACCEPT
-A OUTPUT -p udp -m udp --dport 1194 -j ACCEPT
...

Check that the following processes are running :

command : # ps

expected result :

 bscc process is running
 openvpn process is running
 snmpd process is running

 spf process is running

For example (iBTS):


PID USER       VSZ STAT COMMAND
1 root      1688 S    init [5]

166 root      2864 S    /sbin/udevd -d
811 root     17912 S    {kerosd} /usr/bin/python /usr/sbin/kerosd -p -r 600
825 root      2088 S    /usr/bin/kgpsd -f /etc/kgpsd.conf
904 messageb  2892 S    /usr/bin/dbus-daemon --system
908 root      4492 S    /usr/sbin/connmand
917 root      4660 S    /usr/sbin/sshd -f /etc/ssh/sshd_config
931 ntp       5508 S    /usr/sbin/ntpd -u ntp:ntp -p /var/run/ntpd.pid -g
936 root      2728 S    /sbin/syslogd -n -O /var/log/messages -b 10
940 root      2728 S    /sbin/klogd -n
942 root      4884 S    /usr/sbin/ofonod
948 root      2964 S    /usr/sbin/crond -c /etc/cron/crontabs
1002 root      2728 S    /usr/sbin/ifplugd -n -I -f -d 1 -r /etc/network/ifplugd/local.action -i eth1
1008 root     13228 S    /usr/bin/monit -c /etc/monitrc
1020 root      2596 S    /sbin/watchdog -t 30 /dev/watchdog
1022 root     27304 S    **/user/bscc/bscc -t /user/bscc**
1044 root      2744 S    {start_getty} /bin/sh /bin/start_getty 115200 ttymxc0
1045 root      2976 S    -sh
1416 root      2740 S    {execute_spf2.sh} /bin/sh -e /user/spf2/bin/execute_spf2.sh
1418 root     52144 S    **/user/spf2/bin/spf2 -g /dev/nmea1 -y**
1419 root      2964 S    logger -p local1.notice -t spf2
1711 root         0 SW<  [kworker/u3:7]
1715 root         0 SW<  [kworker/u3:12]
1786 nobody    4952 S    **/usr/sbin/openvpn --remote demoran.wanesy.fr --port 1194 --cipher AES-256-CBC --comp-lzo --remote-cert-tls server --config /etc/op**
1844 root     27944 S    **snmpd -C -c snmpd.conf -f -Lo -Ddlmod,trap,klk_notifications**
1845 root      2964 S    logger -p local0.notice
...

Check that the VPN tunnel has been correctly created.

command : # ifconfig

expected result :

"tun0" or "vpn0" interface should be up.

An IP adress 10.8.0.X should be assigned to this interface.

For example (iBTS):

       vpn0        Link encap:UNSPEC  HWaddr 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00\\
                   inet addr:**10.8.0.13**  P-t-P:10.8.0.13  Mask:255.255.0.0\\
                   UP POINTOPOINT NOARP MULTICAST  MTU:1500  Metric:1\\
                   RX packets:44 errors:0 dropped:0 overruns:0 frame:0\\
                   TX packets:205 errors:0 dropped:0 overruns:0 carrier:0\\
                   collisions:0 txqueuelen:100\\
                   RX bytes:2325 (2.2 KiB)  TX bytes:21686 (21.1 KiB)\\

Check you can ping the VPN Server (10.8.0.1):

command : # ping 10.8.0.1

expected result :

ping result OK

For example:

PING 10.8.0.1 (10.8.0.1): 56 data bytes
64 bytes from 10.8.0.1: seq=0 ttl=64 time=22.011 ms
64 bytes from 10.8.0.1: seq=1 ttl=64 time=22.680 ms
64 bytes from 10.8.0.1: seq=2 ttl=64 time=21.465 ms

Check you can ping the RAN SNMP component (172.18.0.1):

command : # ping snmp

expected result :

ping result OK

For example:

PING snmp (172.18.0.1): 56 data bytes
64 bytes from 172.18.0.1: seq=0 ttl=64 time=23.195 ms
64 bytes from 172.18.0.1: seq=1 ttl=64 time=22.896 ms
64 bytes from 172.18.0.1: seq=2 ttl=64 time=23.204 ms

Check you can ping the RAN LNS component (172.18.0.1):

command : # ping lns

expected result :

ping result OK

For example:

PING lns (172.18.0.1): 56 data bytes\\
64 bytes from 172.18.0.1: seq=0 ttl=64 time=26.369 ms
64 bytes from 172.18.0.1: seq=1 ttl=64 time=29.609 ms
64 bytes from 172.18.0.1: seq=2 ttl=64 time=25.731 ms

Check that the gateway appears as connected to the RAN platform.

command :

Declare your gateway in a fleet (create a new fleet if it does not exist) Follow this link to know how to proceed :Base Station Controller

expected result :

The Gateway should appears with the status: "connected"

For example:

Check that the Packet Forwarding is working correctly by analysing the logs.
You should declare a cluster and add a new end-device or using an existing one to check this function.
Follow this link to know how to proceed :Base Station Controller

• For iBTS: /user/spf2/var/log/
• For iFemtoCell: /user/spf/var/log/
• For Wirnet Station: /mnt/fsuser-1/spf/var/log

Check that the gateway has received some messages from the end-device.

For example:

Dec 11 13:17:52 Wirgrid local1.notice spf: INFO: Received pkt from mote: 003EB638 (fcnt=1)
Dec 11 13:17:52 Wirgrid local1.notice spf: JSON up: {"rxpk":
[{"tmst":628163636,"chan":5,"rfch":1,"freq":868.100000,"stat":1,"modu":"LORA","datr":"SF7BW125","codr":"4/5",
"lsnr":8.8,"rssi":-44,"size":19,"data":"QDi2PgAAAQAPkq7BWJzilVB2Lg=="}]}
Dec 11 13:17:52 Wirgrid local1.notice spf: INFO: [up] PUSH_ACK received in 19 ms
Dec 11 13:17:53 Wirgrid local1.notice spf: WARNING: [gps] could not get UTC time from GPS
Dec 11 13:17:53 Wirgrid local1.notice spf: INFO: [down] PULL_ACK received in 25 ms

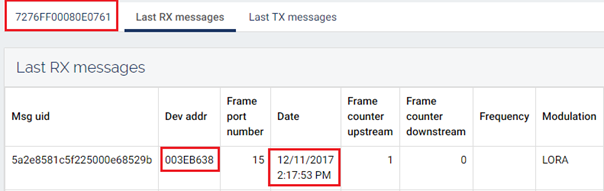

Check that the Packet Forwarding is working correctly by analysing the uplink messages reported to the RAN dashboard.
Follow this link to know how to proceed :Base Station Controller
