QuickStart of Wanesy Management Cockpit

Documentation

Zero Touch provisioning (ZTP) feature

Connecting the gateways to the Wanesy Management Cockpit

Gateways version

The first thing to do is to install the software that allows the gateway to connect to the Wanesy Management Cockpit.

The minimum version to use is 5.9.

Check firmware version on a gateway
Firmware update and configuration
Quick link to software

Create a new user

To create a user, you need to fill the following information:

  • E-Mail (mandatory): enter the E-Mail address of the user
  • Customer/Role (mandatory): define the role of the user (see below for details about roles and associated permissions)

Create a new user

When a new role is assigned to a user, that user must log out and relogin for it to take effect.

In case of multiple customers visible (case of CHANNEL_ADMINISTRATOR), you can associate different roles on different customers to a user among the 5 following roles.
In case of unique customer visible (case of CUSTOMER_ADMINISTRATOR), you can associate different roles on this unique customer to a user among the 4 following roles.

The following roles can be assigned to a user:

  • SERVICE_VIEWER is a role for observing the network status
  • SERVICE_OPERATOR is a role for monitoring the network
  • SERVICE_ADMINISTRATOR is a role for maintaining the network in operational condition (can create/update/delete elements)
  • CUSTOMER_ADMINISTRATOR is a role for managing the user accounts to access to the customer platform
  • CHANNEL_ADMINISTRATOR is a role for managing the user accounts of the customer administrators

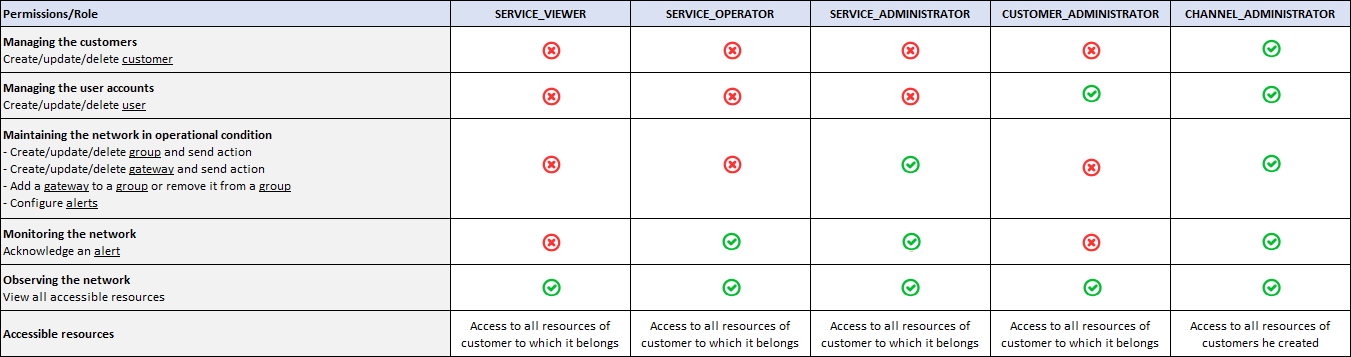

The permissions (on API and WebUI) by role are detailed in the table below:

Validate a Cockpit account

Create a group

Your gateways can be grouped into groups, this a logical regrouping.
You can for instance group all gateways that share the same country/region/city, or which are of the same hardware model.

By default, the number of groups is limited to 100 per customer.

To create a group, you need to fill the following information:

  • Customer (mandatory): select the customer your group should belong [ONLY APPLICABLE IF YOU HAVE ACCESS RIGHTS ON MULTIPLE CUSTOMERS]
  • Name (mandatory): enter a name for your group
  • Description (optional): enter a description for your group
  • Alerting (disabled by default): enable to declare your group as an alerting one

Create a new group

Declare a Gateway

To declare a gateway, you need to fill the following information:

  • Customer (mandatory): select the customer your gateway should belong to [ONLY APPLICABLE IF YOU HAVE ACCESS RIGHTS ON MULTIPLE CUSTOMERS]
  • Gateway EUI (mandatory): a global end-device ID in IEEE EUI64 address space that uniquely identifies the gateway - see How to obtain the gateway EUI
  • Name (mandatory): enter a name for your gateway
  • Description (optional): enter a description for your gateway
  • Groups (optional): select the group(s) your gateway should belong to (the groups must have been created beforehand)
  • Position (optional): three options are possible to configure the position of your gateway
    • Set the position marker on the map
    • Manually enter the coordinates of your gateway (latitude/longitude/ground height)
    • Click on “Detect location” button to use browser capability for an auto-detection of the location
By default, the number of groups is limited to 10 per gateway.
A gateway can only belong to one alerting group at a time.

Declare a Gateway

Wanesy Management Overview
