• Common FAQ

What is default login/password?
What to do in case the password has been lost?
How to read software version?
How to manually update the gateway firmware?
How to factory reset the gateway?
What is the default LEDs behavior?
How to shutdown/restart the gateway?
Where are the logs?
Is an SDK available?

• Wirnet™ iBTS FAQ

What is default Wirnet iBTS hostname?
How to read FPGA version?

• Wirnet™ iFemtoCell FAQ

What is default Wirnet iFemtoCell hostname?

• Wirnet™ iStation FAQ

What is default Wirnet iStation hostname?

• Common FAQ

The default root password is defined here: Credentials.

In case the root password of the Wirnet iBTS or Wirnet iFemtoCell has been lost, an autorun script can be used on a USB key to reset the password. Refer to the USB autorun section and to the change the passwords section for more information.

If the USB password has also been lost, the product can be restored to factory settings, please refer to How to factory reset the gateway section

Otherwise, please contact the support.

Firmware version is written in the file /etc/version.

$ cat /etc/version
4.0.2_20180821165420

Firmware version is also displayed on Web Interface:

It can be done by IP network or USB. Please refer to Software update dedicated section.

To factory reset the gateway, you can use the stock restore feature. A “stock restore” will factory reset the gateway. All data will be lost.

To trigger a “stock restore” execute the following commands:

# kerosd -s
# reboot

More information about “stock restore” feature is available here.

Two SMS can be sent to the gateway to factory reset the gateway.

1st SMS to send to the gateway:

[login:password] [sms_command_id] system/restore/stock

2nd SMS to send to the gateway:

[login:password] [sms_command_id] system/reboot

More information about “SMS” feature is available here.

The LEDs behavior is described here.

To stop the gateway, use the command halt.

To reboot the gateway, use the command reboot.

Most traces of the Wirnet™ Productline gateways can be found under /var/log/messages*.

Kerlink doesn’t provide an SDK to generate KerOs firmwares, just what is necessary to build an application. Information about the Toolchain is available in the toolchain page.

• Wirnet™ iBTS FAQ

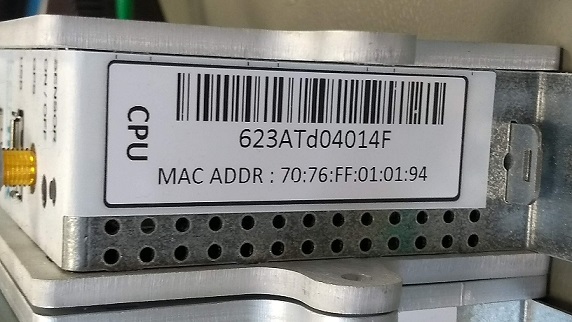

The default hostname of the Wirnet iBTS is “klk-lpbs-04014F” where 04014F is the end of the CPU serial number. This information is present on the sticker placed on the CPU module.

FPGA versions are contained in /tmp/board_info.json file: parameter fpga_swver.
There is one FPGA per LoRaLOC board. If you have 3 LoRaLOC, there will be 3 versions in the file.

Example: On this gateway, FPGA version is v61.

# grep "fpga_swver" /tmp/board_info.json
"fpga_swver": "61",
"fpga_swver": "61",
"fpga_swver": "61",

• Wirnet™ iFemtoCell FAQ

The default hostname of the Wirnet iFemtoCell is “klk-wifc-020010” where 020010 is the end of the board ID. This information is present on the sticker placed on the rear side of the case.

• Wirnet™ iStation FAQ

The default hostname of the Wirnet iStation is “klk-wiis-020011” where 020011 is the end of the board ID. This information is present on a sticker placed on the right view of the case.
