To connect a gateway to a network there are several possible interfaces:

• Ethernet
• WAN / PPP
• WiFi (Wirnet iFemtoCell only)

The interfaces are handled by ConnMan, which is a daemon for managing Internet connections within embedded devices. ConnMan provides a way to auto connect interfaces, to prioritize interfaces (route management), and to configure fallback interfaces. ConnMan is not used to monitor the network.

Cellular protocol is handled by oFono. The use of oFono is almost entirely handled by ConnMan. Ethernet is directly handled by ConnMan. For further details about ConnMan, please refer to Connman documentation.

Interfaces' configuration could be done through:

• Web interface.
• SMS.
• RESTAPI.
• Editable configuration files.
• WiFi Acces-Point (Wirnet iFemtoCell only).

Kerlink provides two scripts to monitor the network (only one can be used at the same time):

• networkmonitoring.py: This script is self-sufficient. It is used to monitor/repair the default route (it regularly pings an IP).
• fixnetwork.py: This script is designed to be called by a customer application. It is used to repair multiple interfaces at the same time.

ConnMan’s auto-connection and fallback are configured via the editable configuration file /etc/network/connman/main.conf. ConnMan automatically detects configuration changes and applies them when the configuration file is closed.

ConnMan handles which interfaces should be mounted/used in which order, at boot time, but also when an interface appears/disappears.

The behavior of ConnMan regarding interface mounting can be changed with the following options. Please refer to connman's documentation to properly understand how these parameters are used. By default, ConnMan will auto-connect to Ethernet and cellular and prioritizes Ethernet over cellular.

DefaultAutoConnectTechnologies = ethernet, wifi, cellular
PreferredTechnologies = ethernet, wifi, cellular

Removing a technology from these parameters does not mean that this technology will not be used. It means that this technology will be used last. To force a technology to be unused, the following parameter can be used.

NetworkInterfaceBlacklist = ethernet

The field value wifi is a default value for ConnMan. It is simply ignored if no WiFi device is available on the gateway.

The routing table is managed by ConnMan. To define what should be the default route, in addition to the preferred technologies and the auto connected technologies mechanism, ConnMan tries to connect to an HTTP server when the interface is mounted. If successful, service is declared as Online, if not, it is declared Ready.

This is what O or R means in connmanctl services. Example:

# connmanctl services
*AO Wired                ethernet_7076ff0100b5_cable
*AR Orange F             cellular_208017001155386_context1
# connmanctl connect cellular_208017001155386_context1
Connected cellular_208017001155386_context1

By default, ConnMan tries to reach the server “ipv4.connman.net”. Since the gateway is used to send/receive LoRa packets to an LNS, checking the default server is not optimal. For example, the LNS could be in a local network, or “ipv4.connman.net” could be down. In those cases, the check would be negative whereas the LNS is reachable. For those reasons, it is strongly advised to configure ConnMan to check the LNS instead of “ipv4.connman.net”.

The online check mechanism can be configured with the following parameters:

EnableOnlineCheck = true
OnlineCheckUseConnmanHeaders = true
OnlineCheckServerIpV4Url = http://ipv4.connman.net/online/status.html
OnlineCheckServerIpV6Url = http://ipv6.connman.net/online/status.html

When checking if a service is online, the OnlineCheckUseConnmanHeaders parameter forces ConnMan to check for specific headers in HTTP response. If this setting is false, a 200 status is enough to say that service is ONLINE. When using your own server, set OnlineCheckUseConnmanHeaders to false, otherwise ConnMan specific headers will be tested.

When using the OnlineCheckUseConnmanHeaders parameter, before configuring the URL in ConnMan, it is strongly advised to check the response of this URL.

You can use the following command for the check. Replace the URL by your own.

# curl -vs http://www.google.com/

The check is OK if < HTTP/1.x 200 OK is displayed

*   Trying 172.217.16.68...
* Connected to www.google.com (172.217.16.68) port 80 (#0)
> GET / HTTP/1.1
> Host: www.google.com
> User-Agent: curl/7.47.1
> Accept: */*
>
< HTTP/1.1 200 OK
< Date: Tue, 10 Apr 2018 13:24:22 GMT
< Expires: -1
< Cache-Control: private, max-age=0
< Content-Type: text/html; charset=ISO-8859-1
< P3P: CP="This is not a P3P policy! See g.co/p3phelp for more info."
< X-XSS-Protection: 1; mode=block
< X-Frame-Options: SAMEORIGIN
< Server: gws
< Set-Cookie: 1P_JAR=2018-04-10-13; expires=Thu, 10-May-2018 13:24:22 GMT; path=/; domain=.google.com
< Set-Cookie: NID=127=bLF6FcSHkY73RVk5FpKGpy4vOr8MO2F6GA__Z-N-jSYPT0bmu7blzhSAwT84rUFaN8QVAof8iDLSFTCnWSN0zExyMYx7d2apB5lRsg0uKfartso28B-SmC9cVBOL_Hgp; expires=Wed, 10-Oct-2018 13:24:22 GMT; path=/; domain=.google.com; HttpOnly
< Accept-Ranges: none
< Vary: Accept-Encoding
< Transfer-Encoding: chunked
<
<!doctype html>
...

Fallback DNS server are used if no DNS server is given by DHCP server of a particular service. They can be configure using following parameter:

FallbackNameservers = 9.9.9.9,8.8.8.8,1.1.1.1

ConnMan’s LAN Ethernet configuration is done via an editable configuration file /etc/network/connman/lan.config. This file is not created by default on the gateway. A configuration file /etc/network/connman/lan.config.example is provided.
Once file /etc/network/connman/lan.config is created, ConnMan applies automatically the configuration. Executing /etc/init.d/connman restart is not mandatory

By default DHCP is used, there is no default IP address. To use static IP addressing, the field IPv4 can be changed, for example, from

IPv4 = dhcp

to

IPv4 = 192.168.1.5/24/192.168.1.1

Where 192.168.1.5 will be the new IP address of the Wirnet gateway, 24 will be the subnet length (in bits), and 192.168.1.1 will be the default gateway.

If DNS resolution is needed, the Nameservers field can be added. Multiple addresses can be used. For example:

Nameservers = 192.0.2.1,192.0.2.2

ConnMan automatically detects the changes and applies them when the configuration file is closed.

To check and analyze the status of the Wirnet iBTS, a computer can be connected to the LOCAL RJ45 connector of the CPU module.

Local Ethernet is managed independently by the ifplugd daemon.

Once an ethernet cable plug is detected:

1. 3 DHCP discover frames are sent to check if a DHCP server is present on the network.
2. If it fails, a static IP address is set as configured in /etc/network/ifplugd/local.conf. The default IP address is 192.168.1.1.

A DHCP server can also be started if configured.

ConnMan’s WiFi (wlan) Ethernet configuration is done via the editable configuration file /etc/network/connman/wlan.config.

To manually configure a WiFi network, the fields Name and Passphrase must be changed.

[global]
Name = WLAN
Description = WLAN Interface configuration

[service_WLAN]
Type = wifi
IPv4 = dhcp
Name = SSID Name
Passphrase = 1234passphrase

Connman supports multiple WiFi 'services' descriptions. Just add a new 'service' with another name than “service_WLAN”.
It also supports various type of configuration (static, tls, peap, …).

For further details on ConnMan service configuration, please refer to ConnMan's online documentation.

The WPS button of the Wirnet iFemtoCell can be used to simply connect the gateway to a WiFi network.

• Press the WPS button of your WiFi access point.
• Press the WPS button of the Wirnet iFemtoCell.
• The association is done between the gateway and the WiFi access point.

The WPS button is indicate by a WiFi symbol.

The Wirnet iFemtoCell cellular modem is an external USB cellular dongle, here a list of several dongles tested in the Cellular backhaul page.
The other Wirnet gateways cellular modem is an internal modem.
These modems provide integrated userland APIs. Cellular configuration is achieved by configuring oFono. Each time a new sim card is used oFono configuration need to be reloaded with Ofono reset command.

The oFono daemon is used to configure the modem at startup or to reconfigure the modem.

oFono also provides a D-Bus API to get and set the properties of the modem. It's mainly used to provision ConnMan and to abstract future modem modifications.

To get alarms or any information from modem through oFono API, please refer to oFono Documentation.

oFono configuration is done via the editable configuration file /etc/network/ofono/provisioning.

It is used to define APN, PIN code and cellular context:

• A default APN for all SIM cards can be stored in this file. In this case, the MCC/MNC are not needed.
• Multiple APN for multiple SIM card can be stored (using MCC/MNC of the SIM).
• A default PIN code for all SIM cards can be stored.
• Multiple PIN code for multiple SIM card can be stored (using SIM card ICCID).
• Usually SIM cards only need SIM PIN code to be unlocked but sometimes other types of PIN code can be used, as described in the example below.

A file named /etc/network/ofono/default_provisioning contains several operators configuration (MCC, MNC, APN) for several countries.

If the SIM used is already configured in this file, there is no need of configuring the APN the /etc/network/ofono/provisioning.

provisioning

# Syntax:
#
## Default "operator" configuration:
#[operator]
#internet.AccessPointName=<APN>              # Mandatory
#internet.Username=<username>
#internet.Password=<password>
#internet.AuthenticationMethod=<method>      # chap (default), pap, none
#internet.Protocol=<protocol>                # ip (default), ipv6, dual
#
## Specific "operator" configuration:
#[operator:<MCC>,<MNC>]
#internet.AccessPointName=<APN>              # Mandatory
#internet.Username=<username>
#internet.Password=<password>
#internet.AuthenticationMethod=<method>      # chap (default), pap, none
#internet.Protocol=<protocol>                # ip (default), ipv6, dual
#
## Default "sim" configuration:
#[sim]
#pin=<pin>                                   # SIM pin
#phone=<pin>                                 # PH-SIM pin
#firstphone=<pin>                            # PH-FSIM pin
#network=<pin>                               # PH-NET pin
#netsub=<pin>                                # PH-NETSUB pin
#service=<pin>                               # PH-SP pin
#corp=<pin>                                  # PH-CORP pin
#
## Specific "sim" configuration:
#[sim:<ICCID>]
#pin=<pin>                                   # SIM pin
#phone=<pin>                                 # PH-SIM pin
#firstphone=<pin>                            # PH-FSIM pin
#network=<pin>                               # PH-NET pin
#netsub=<pin>                                # PH-NETSUB pin
#service=<pin>                               # PH-SP pin
#corp=<pin>                                  # PH-CORP pin

A list of Mobile Network Code / Mobile Country Code can be found on mcc-mnc.com.

oFono stores information about SIM cards into the /etc/network/ofono/YOUR_IMSI* folder. The provisioning file is only used if this folder does not exist.

To update oFono with the last configuration, each time the file is changed, a service reset has to be performed.

/etc/init.d/ofono reset

GSM diagnosis tool is a script using oFono interfaces to detect most common problems on cellular modems. It can also be used to have a quick view of cellular modems status on board.

It produces information on modem status directly on the console and also a text file /tmp/gsmdiag.txt.

Call of script: # gsmdiag.py

Diagnosis output examples:

Modem ready to connect

# gsmdiag.py
Number of modems: 1
[Modem:/sierra_0]
  Powered:1
  Online:1
  Manufacturer:Sierra Wireless, Incorporated
  Model:MC7304
  Revision:SWI9X15C_05.05.39.02 r22713 carmd-fwbuild1 2014/06/19 16:48:58
  [SimProps]
    Present:1
    CardIdentifier:89330120403002181830
    SubscriberIdentity:208016202395143
    LockedPins:dbus.Array([dbus.String(u'pin')], signature=dbus.Signature('s'), variant_level=1)
    PinRequired:none
  [NetworkRegistrationProps]
    Status:registered
    MobileCountryCode:208
    MobileNetworkCode:01
    Name:Orange F
    Strength:40
  [ConnectionContexts]
    [/sierra_0/context1]
      Name:Internet
      Active:0
      Type:internet
      Protocol:ip
      AccessPointName:orange.m2m.spec
      Username:
      Password:
      AuthenticationMethod:chap
Diagnostic written in /tmp/gsmdiag.txt

SIM not detected

# gsmdiag.py
Number of modems: 1
[Modem:/quectelqmi_2]
  Syspath:/sys/devices/soc0/soc/2100000.aips-bus/2184200.usb/ci_hdrc.1/usb2/2-1/2-1.1
  HardwarePosition:internal
  Powered:1
  Online:1
  Manufacturer:QUALCOMM INCORPORATED
  Model:QUECTEL Mobile Broadband Module
  Revision:EG25GGBR07A08M2G
  [SimProps]
    Present:0
  Error: no SIM in modem (double checked with AT commands)
Diagnostic written in /tmp/gsmdiag.txt

SIM detected but not operational

# gsmdiag.py
Number of modems: 1
[Modem:/quectelqmi_1]
  Syspath:/sys/devices/soc0/soc/2100000.aips-bus/2184200.usb/ci_hdrc.1/usb1/1-1/1-1.1
  HardwarePosition:internal
  Powered:1
  Online:1
  Manufacturer:QUALCOMM INCORPORATED
  Model:QUECTEL Mobile Broadband Module
  Revision:EG25GGBR07A07M2G
  [SimProps]
    Present:0
  Error: SIM detected (ICCID: 8959102062181454741F) but not usable by Ofono
Diagnostic written in /tmp/gsmdiag.txt

Wrong pin code case

# gsmdiag.py
Number of modems: 1
[Modem:/sierra_1]
  Powered:1
  Online:0
  Manufacturer:Sierra Wireless, Incorporated
  Model:MC7304
  Revision:SWI9X15C_05.05.39.02 r22713 carmd-fwbuild1 2014/06/19 16:48:58
  [SimProps]
    Present:1
    CardIdentifier:89330120403002181830
    SubscriberIdentity: property does not exist
    LockedPins:dbus.Array([dbus.String(u'pin')], signature=dbus.Signature('s'), variant_level=1)
    PinRequired:pin
  Error: SIM code required (PIN, PUK, ...)
Diagnostic written in /tmp/gsmdiag.txt

This script displays:

• Humanly readable hardware position of a cellular modem:
  • slot and position in slot
  • or “extusb” if modem is a dongle (since v3.3)
• oFono path of a cellular modem
• ConnMan service corresponding to a cellular modem
• Network interface corresponding to a cellular modem
• Modem syspath

A modem can be identified by any of these parameters.

Only meaningful parameters are displayed (if a modem is not attached to a data network, it does not have a corresponding ConnMan service).

# getmodeminfo.py
Usage: /usr/bin/getmodeminfo.py [OPTION]
Options are:
 -h get modem info from modem hardware position
    -h modemslot,modemposition: for modem inside cellular modules
    -h extusb: for modem plugged on external USB
    -h syspath: for any modem (example: /sys/devices/soc0/soc/2100000.aips-bus/2184200.usb/ci_hdrc.1/usb2/2-1/2-1.3)
 -o ofononame: get modem info from modem ofono name (example: /sierra_0)
 -c connmanservice: get modem info from corresponding connman service
 -n interfacename: get modem info from corresponding network interface name

When successful, the output will look like this:

#getmodeminfo.py -n ppp0
modem position: extusb
ofono modem name: /huawei_0
connman service: cellular_208103292732049_context1
network interface name: ppp0
modem syspath: /sys/devices/soc0/soc/2100000.aips-bus/2184000.usb/ci_hdrc.0/usb1/1-1

AT commands are instructions used to control a modem. They allow users to communicate directly with the modem. AT is the abbreviation of ATtention. It is used for different operations such as debugging, dialing and changing connection parameters.

On Wirnet IBTS gateway, serial port to access cellular module AT command interface is /dev/slot/${SLOTNO}/ttyAT${MODEMNO} (speed: 115200), where:

• $SLOTNO is the slot number (1 if the cellular module is plugged just next to the CPU module).
• $MODEMNO is the modem number (1 for single WAN modules, 1 or 2 for dual WAN modules).

On other gateways with an internal modem, serial port to access cellular module AT command interface is /dev/ttyAT (speed: 115200).

It is not possible to send AT commands to external USB dongles used on Wirnet iFemtoCell.

• Get IMEI (iStation and iFemtoCell Evolution):

  echo $'AT+CGSN\r' | microcom /dev/ttyAT
  # result:
  root@klk-wiis-xxxxxx:~ # echo $'AT+CGSN\r' | microcom /dev/ttyAT
  AT+CGSN
  86769xxxxxxxxx8
  OK

A command line tool called qmicli is available to provide a large set of services such as:

• Get IMEI:

  qmicli -d /dev/cdc-wdm1 --dms-get-ids

• Get information on attached session:

  qmicli -d /dev/cdc-wdm1 --nas-get-serving-system

• List qmicli services:

  qmicli --help-all

This is only usable on Sierra Wireless modems.

Depending on the region, the gateways are shipped with different types of cellular modules (Sierra wireless MC7354, MC7304 and MC7430).

By default, these modules contain a generic firmware. Even though this generic firmware is sufficient to properly work with most operators, Sierra Wireless supplies a list of operators approved firmware.

Refer to Sierra Wireless or to the operators to get further information about this firmware and to know in which case they are required.

To simplify the firmware upgrades on Wirnet iBTS, Kerlink provides .ipk packages that automatically install the firmware. Check your modem version before using one of this ipk.

These packages are available in the resources page.

To determine the cellular module type on a gateway, use the following command:

$ grep Model /tmp/sys_startup_status.json
"Model": "MC7304",

To determine which cellular module firmware is currently installed, use the following command:

$ grep radio_sw_version /tmp/sys_startup_status.json
"radio_sw_version": "9999999_9902574_SWI9X15C_05.05.58.00_00_GENNA-UMTS_005.025_002",

To trigger the update, first, check the module version of the gateway and make sure it is compatible with the firmware you want to install. Then follow the instruction of the software updates page. The update takes about 5 minutes.

A successful upgrade should display this kind of trace:

original firmware revision was:
  SWI9X15C_05.05.58.00 r27038 carmd-fwbuild1 2015/03/04 21:30:23
    image 'modem': unique id '005.026_000', build id '05.05.58.00_GENEU-4G'
    image 'pri': unique id '005.026_000', build id '05.05.58.00_GENEU-4G'

new firmware revision is:
  SWI9X15C_05.05.58.00 r27038 carmd-fwbuild1 2015/03/04 21:30:23
    image 'modem': unique id '005.022_000', build id '05.05.58.00_ROGERS'
    image 'pri': unique id '005.022_000', build id '05.05.58.00_ROGERS'

The firmware upgrade happens after the gateway reboot. Therefore, the /tmp/sys_startup_status.json file is not populated with the right values. If you want to check the version of the firmware without rebooting the gateway first, you need to execute the following command:

$ discoveryScript.py -o /tmp/sys_startup_status.json

See the dedicated page: Web interface.

See the dedicated page: SMS.

See the dedicated page: REST API.

See the dedicated page: Network monitoring.

The /etc/default/networking file allow user to choose the network manager:

/etc/default/networking

# We use ConnMan by default; uncomment to activate ifupdown
#NETWORK_MANAGER=ifupdown

By default, the line is commented, meaning that ConnMan is used to manage the network. If this line is uncommented and ConnMan turned off (reboot or /etc/init.d/connman stop), the interfaces management is configured by ifupdown.

This means that the interfaces have to be configured through /etc/network/interfaces, are brought down using ifdown <interface> and up using ifup <interface>.

This is an example for static IP addressing for eth0:

/etc/network/interfaces

# /etc/network/interfaces -- configuration file for ifup(8), ifdown(8)

# --- other interfaces omitted for brevity

# Wired or wireless interfaces
auto eth0
iface eth0 inet static
        address 192.168.0.95
        netmask 255.255.255.0
        gateway 192.168.0.254
        network 192.168.0.0

Bring up the interface:

ifup eth0

The aim of the router mode is to bring data connection to a sub-network thanks to a connection from a single gateway.

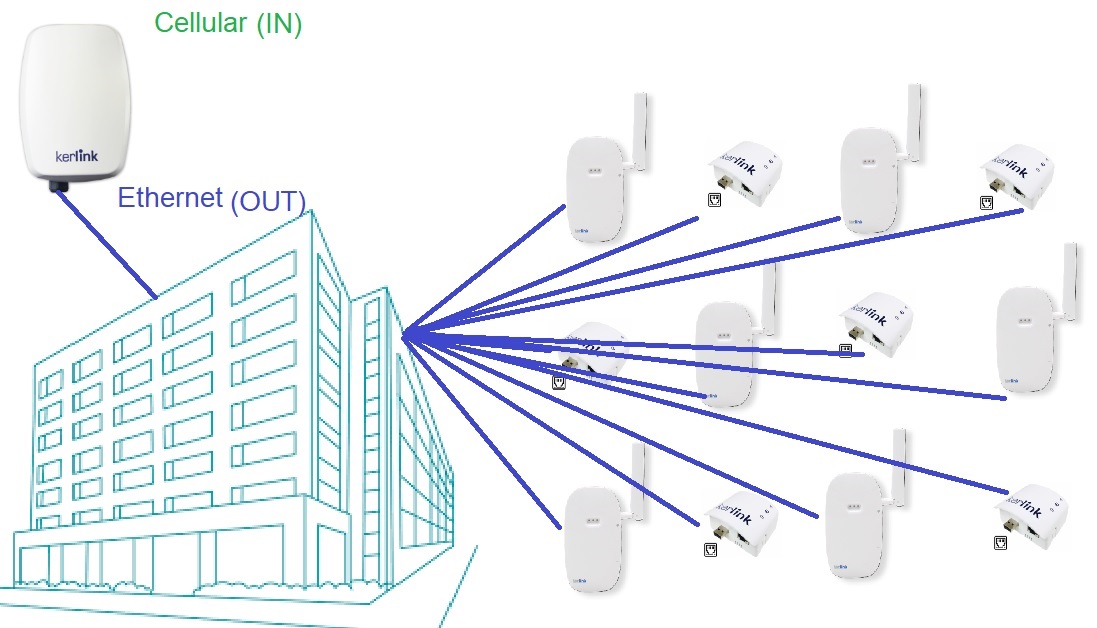

Here is an example of how it could be used :

To activate the router mode on a gateway, some commands need to be made in the gateway console.

Here are the commands :

# Activate router mode
echo "ROUTER=yes" > /etc/default/localnet.conf

# Edition of /etc/network/connman/main.conf to disable handling of eth0:
NetworkInterfaceBlacklist = vmnet,vboxnet,virbr,ifb,eth1,wlan-adm,usb,eth0

# Add eth0 to localnet handling by adding this line in /etc/udev/rules.d/localnet.rules
SUBSYSTEM=="net", KERNEL=="eth0", RUN+="/etc/udev/scripts/localnet.sh"

# Make sure this config is saved in case of firmware upgrade
echo "/etc/udev/rules.d/localnet.rules" > /etc/sysupgrade.d/localnet.conf

These commands need to be made on the gateway which will host the connection only. Nothing has to be done on other gateway(s).
A reboot of the gateway is needed to apply this configuration. You can do so with the command reboot

The host gateway can now provide data connection locally to another gateway or to multiple gateways thanks to an ethernet switch.
Local connections to the switch can be:

• Ethernet and/or
• WLAN
