Web interface
Connect to the web interface
The easiest way to connect to your gateway is to address it by name. Wirnet gateways are named after their serial number, as described below, with XXXXXX replaced by the six hexadecimal digits from the serial number; these digits are taken from the last six hexadecimal digits of “EUI” for iZeptoCell Cellular.
http://klk-zcel-XXXXXX/: For example for the iZeptoCell Cellular with 7076FF0080030025 as EUI, the hostname will be: klk-zcel-030025.
It is also possible to enter the IP address of your gateway into your browser’s URL bar (Make sure your computer is on the same local network): http://192.168.120.1/
The default credentials are:
Login:admin
Password:pwd4admin
The web interface allows to:
- Trigger upgrade/update on the gateway.
- Manage the network connectivity.
- Trigger actions on the gateway: Turn off, reboot, factory reset.
When changing the IP of the gateway, or when switching from DHCP to fix IP and vice versa, connection to the web interface will be lost. This is not a bug. As the IP changed, the IP used in the browser’s URL bar is no longer up-to-date. Update it to recover the web interface

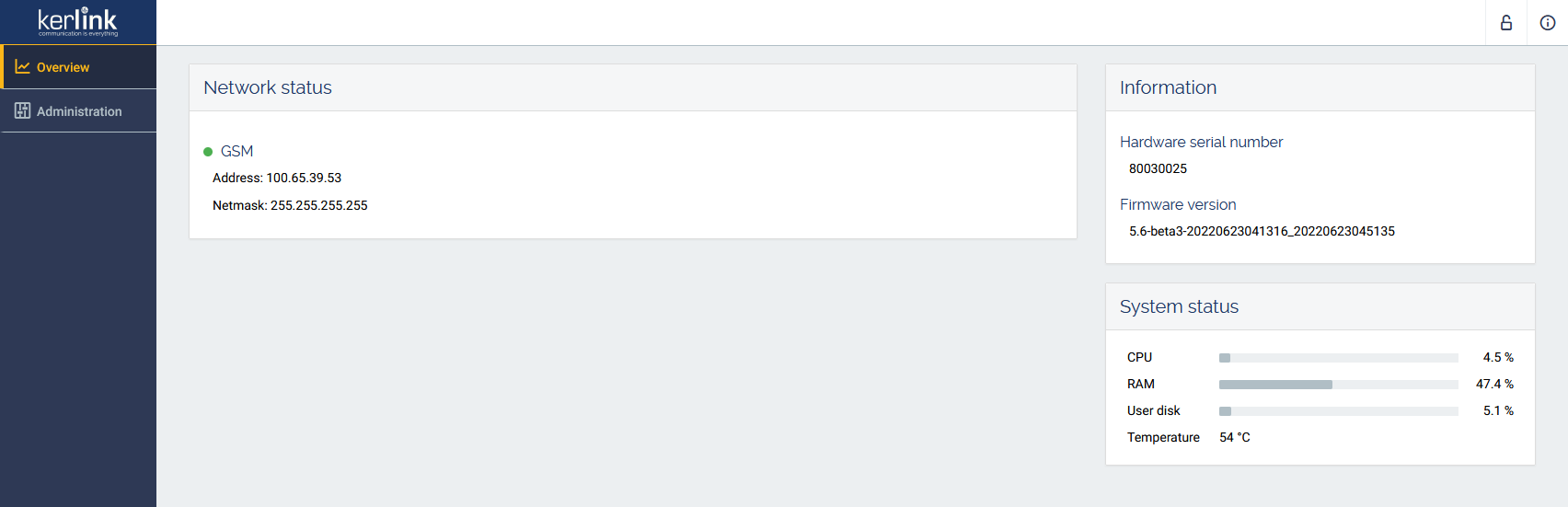

Overview menu
The overview menu provides the network connectivity status as well as the firmware version, the hardware serial number, and the system status.
| Wirnet iZeptoCell Cellular Web_UI |
 |
Administration menu
Network configuration
The network can be easily configured thanks to the web interface.
After cellular configuration has been set, a reboot of the gateway is required to take into account the new APN configuration.

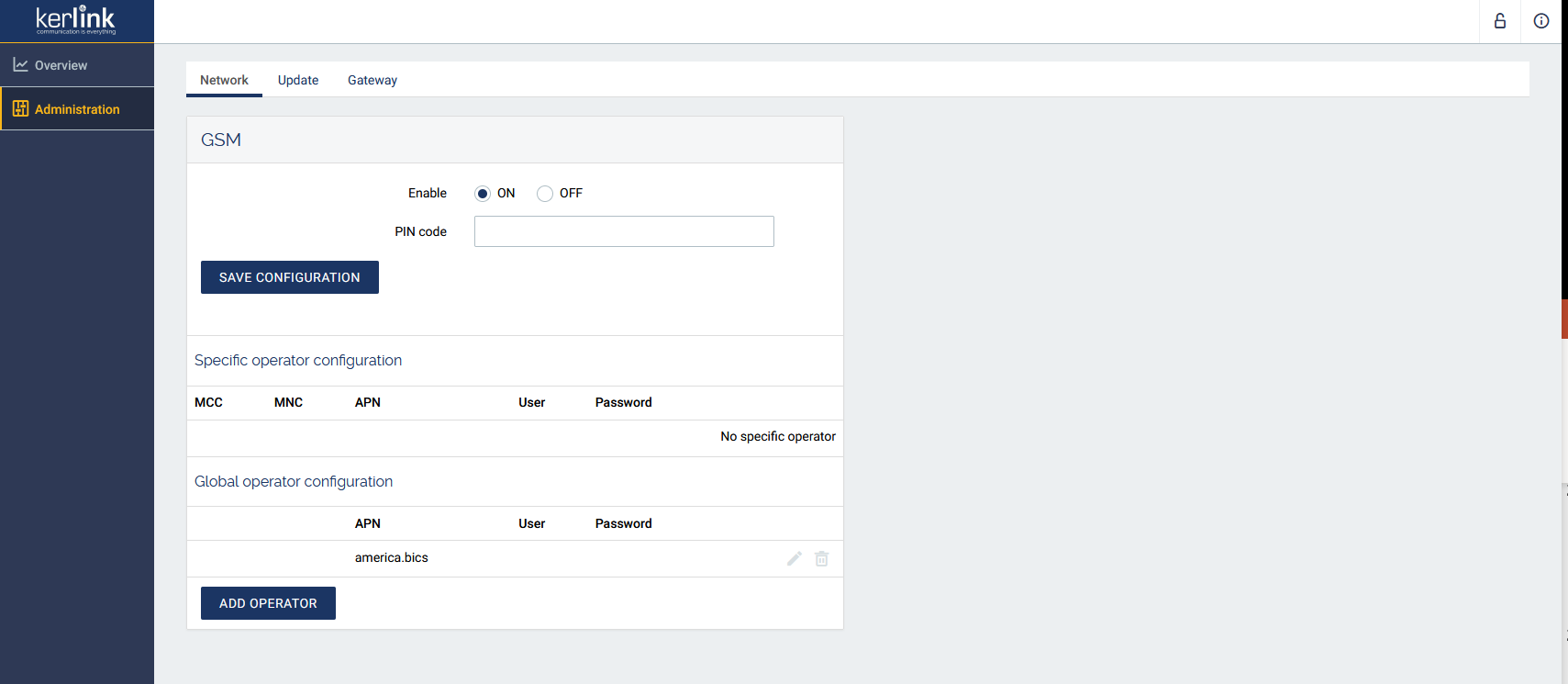

GSM
The GSM access can be configured in the web interface.
Any specific operator can be configured.
APN is configured by default and no needs to be changed :
• For IZEPTO deployed in North America : APN is equal to america.bics
• For IZEPTO deployed in Europe : APN is equal to bics.apn
• For IZEPTO deployed in india : APN is equal to asia.bics
• For IZEPTO deployed in North America : APN is equal to america.bics
• For IZEPTO deployed in Europe : APN is equal to bics.apn
• For IZEPTO deployed in india : APN is equal to asia.bics
Update
Drag & drop your ipk file and click on UPDATE GATEWAY.
A reboot is required to finalize the update, click on REBOOT GATEWAY.
Gateway administration menu
Several actions can be triggered from the Gateway tab:
- Web interface password change.
- Time settings change.
- Gateway shutdown (halt command).
- Gateway reboot.
- Gateway factory reset (a gateway reboot is required to initiate the factory reset).
